Features:

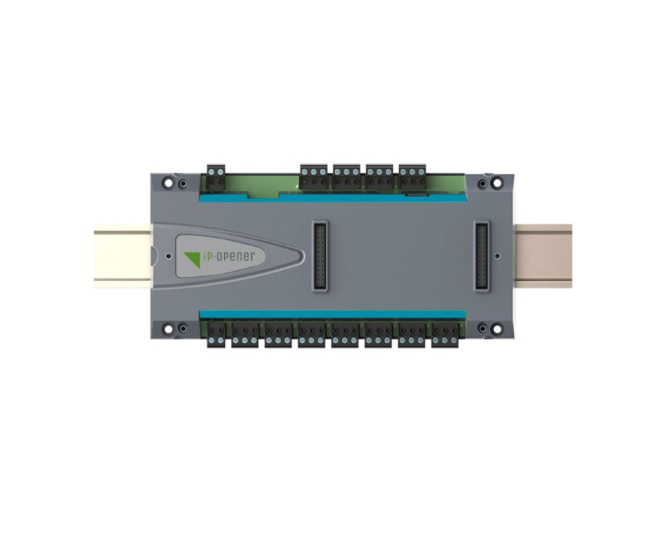

– Module specially designed for the management of lifts.
– 12Vdc power supply.
– 10 output expander module.
– Connection to controller via RS485.
– 48Vdc/1A or 24Vdc/5A output relays.
– DIN rail installation.
– The connection of the module to iP Opener enables the creation of a RS485 bus with up to 220 relay outputs (by using 10 GM-IPOP-10S-RS485 modules + 10 GM-IPOP-EXP12S expanders).
Product specification:
– Connection: RS485
– Use: Indoor
– Mounting: DIN rail
– Input voltage: 12Vcc
– Colour: Grey
– Maximum working temperature (ºC): 50
– Minimum working temperature (ºC): -20
– Dimensions – High (mm): 90
– Dimensions – Width (mm): 200
– Dimensions – Deep (mm): 34
– Weight (gr.): 313
– Mounting: DIN rail
– DIN rail installation.
